Mastering Wire Preparation for WAGO 221 Series Connectors: Stripped Wire Length Explained

Wiring projects can be simplified significantly with the right tools and techniques. WAGO’s 221 Series Quick Wire Connectors have gained popularity for their innovative design and ease of use. However, to maximize their potential, users need to adhere to one critical requirement: the correct stripped wire length. In this blog, we’ll explore the importance of this seemingly minor detail and how it ensures the optimal performance of the WAGO 221 Series.

The WAGO 221 Advantage

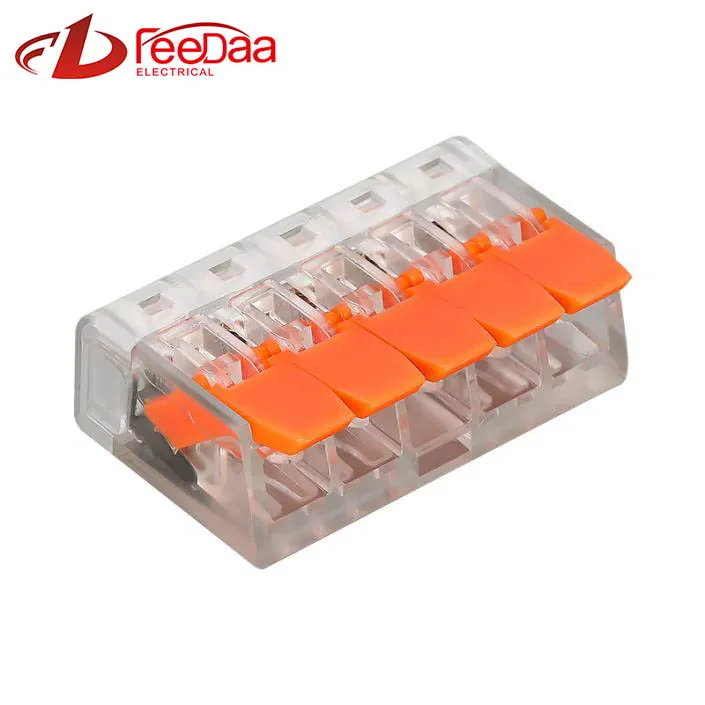

The WAGO 221 Series Quick Wire Connectors revolutionize wiring by offering a tool-free, lever-operated clamping system that works with solid, stranded, and fine-stranded wires. These connectors accommodate a wide range of wire sizes (AWG 24–12 or 0.14–4 mm²) and provide a fast, reliable way to join electrical conductors. With a clear housing, you can visually inspect the connection, adding a layer of assurance.

While these connectors simplify the wiring process, their efficiency depends on proper preparation—particularly the stripped wire length.

Required Stripped Wire Length for WAGO 221 Connectors

To achieve a proper connection with WAGO 221 connectors, wires must be stripped to exactly 11 mm (0.43 inches). This length is not arbitrary; it is based on the design of the clamping mechanism and the need to balance safety with electrical performance.

Why 11 mm Matters

1. Proper Fit and Contact: The stripped wire length matches the depth of the connector's clamping mechanism, ensuring a snug fit and reliable electrical contact.

2.Minimized Risk of Failure: Excessive or insufficient stripped length can lead to common wiring issues such as loose connections, overheating, or arcing.

3.Enhanced Safety: The insulation remains flush with the edge of the connector, preventing any exposed wire from creating hazards.

Steps to Strip Wire Correctly

1. Use High-Quality Tools: Choose a reliable wire stripper that provides precise length settings and clean cuts.

2. Measure Accurately: Mark the insulation at exactly 11 mm (0.43 inches) using a ruler or the integrated guide on your wire stripper.

3. Strip with Care: Remove the insulation gently, ensuring no damage to the conductor strands.

4. Inspect the Wire: Check that the stripped length is accurate and that the conductor is free of nicks or damage.

Preparing wires to the correct stripped length is a simple yet crucial step in achieving optimal results with the WAGO 221 Series Quick Wire Connectors. By adhering to the recommended 11 mm (0.43 inches) stripped wire length, you can ensure safe, efficient, and durable electrical connections for a wide variety of applications.

Remember, attention to detail is key in electrical work. The WAGO 221 Series connectors make the job easier, but precision in preparation ensures you can rely on these connections for years to come. Take the time to get it right, and let WAGO connectors handle the rest.
