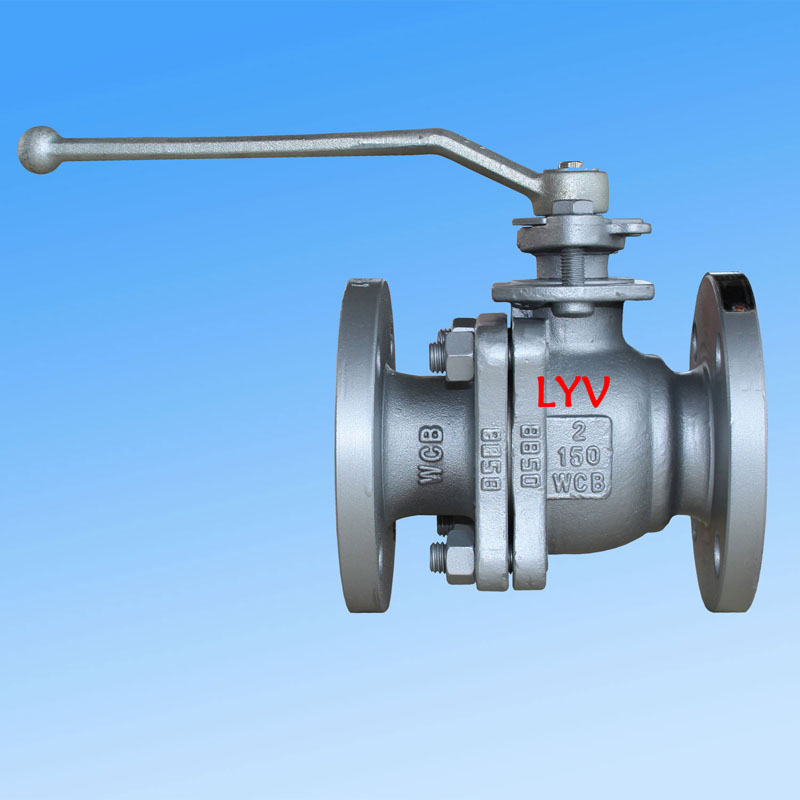

Floating Ball Valve

LYV® is a professional industrial valves manufacturer, exporting different valves to the American, Canadian, Southeast Asia, Russia, and Middle East etc. With the CNC equipment and skilled workers, we can produce more than 50,000 pieces of ball valves per year. We look forward to being a supplier that you can trust.

The 2 piece floating ball valve is designed per ISO 17292, API 608, & API 6D, as a split-body floating ball type.

Design & Testing International Standard of Two-Piece Ball Valve

Design Standard : BS EN ISO 17292 (BS 5351) / ASME B 16.34 /API 6D

Inspection & Testing Standard : API 598/ API 6D

Fire Safe Testing Standard : API 607/API 6FA

Flange To Flange Length : ANSI B 16.10 (Short pattern/ Long pattern)

End Connection : Flanged End to ANSI B 16.5, Butt Weld Ends, Stock Weld Ends

Manufacturer Size and Pressure Range:

NPS 1/2” to 10” (for ANSI Class 150LB)

NPS 1/2” to 8” (for ANSI Class 300LB)

NPS 1/2” to 4” (for ANSI Class 600LB)

or

DN15 to DN250 (for PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa)

DN15 to DN200 (for PN4.0Mpa, PN5.0Mpa)

DN15 to DN100 (for PN6.3Mpa, PN10.0Mpa)

Pipe Bore: Full Bore (FB)/ Reduce Bore(RB)

Construction Body: End Entry

Bonnet/Cover type: Bolted Bonnet/Extended Bonnet

Seat Type: Soft type/ Hardseal Metal Type

Flow Directional: Uni-Directional/Bi-Directional

Service Medium: Natural Gas, Oil, Water, Oxygon gas, etc

Service: SOUR, ISO 15156/ NACE MR0175

Feature: Fire Safety design

Anti-Static Design

Blow-out Proof Stem

Valve Operation: Manual Lever / Worm-Gear /Actuator Operated/ Pneumatic Actuator / Electrical Actuator
